Bus sim depot report: KB

Overview

• Depot: KB
• Sim run time: 2 days
• Charger max power: 150 kw
• Number of chargers: 30
• Depot power supply: 2000 kw
• Bus count:
• std: 20
• art: 20
• exp: 0

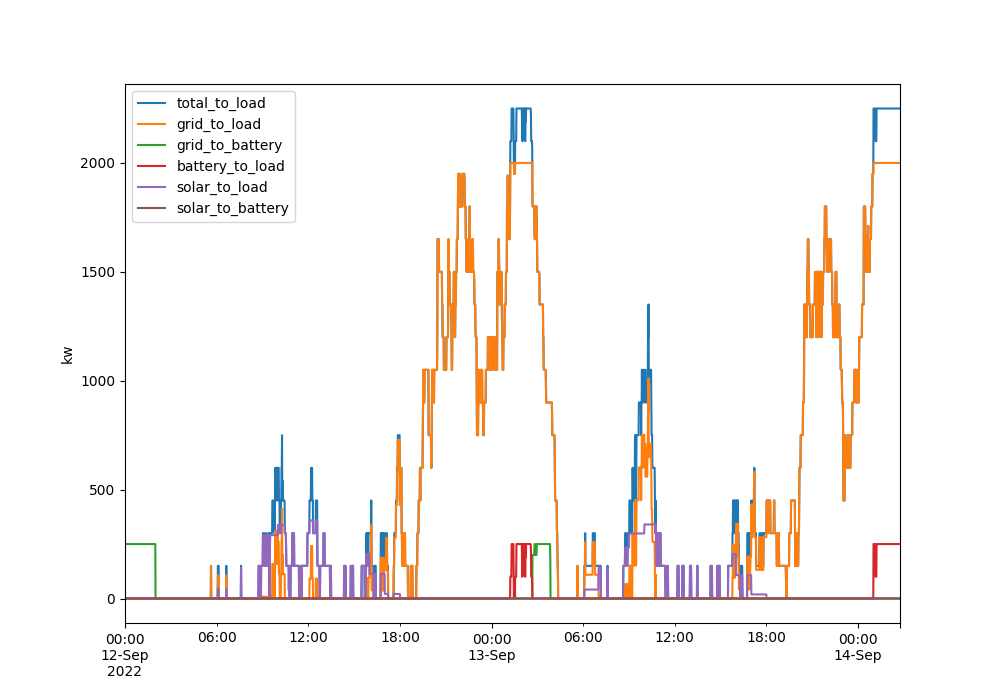

Depot power use

Load profile csv

• Charging constrained during peak hours: False
• Max total to load: 2,250.0 kw
• Max solar to load: 358.649173 kw
• Max battery to load: 250.00000000000003 kw
• Max grid to load: 2,000.0000000000002 kw

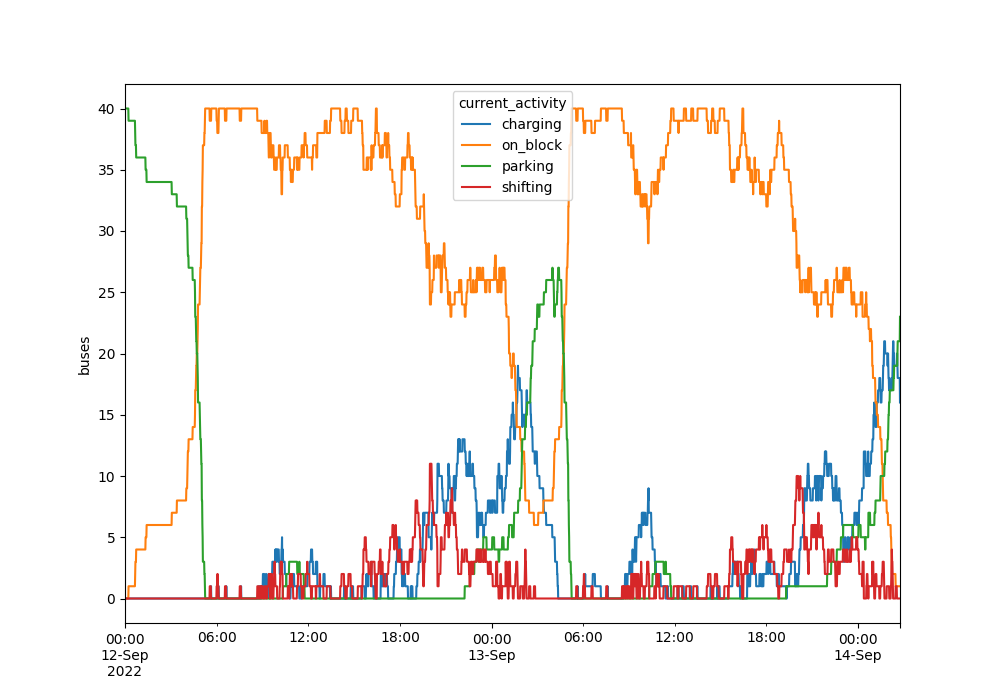

Buses and blocks

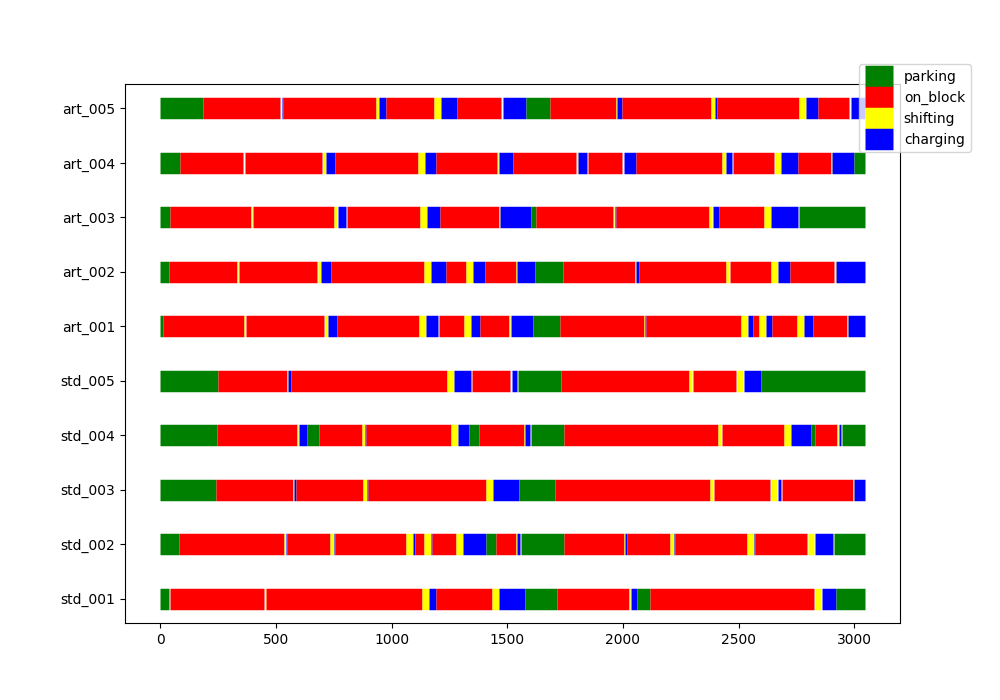

Bus data csv Bus Gantt activity data csv

Block success by bustype

Full tracked block data

	type	status	num_blocks	miles_1000s	duration_hours
0	art	dropped_no_bus	371	10.764081	1995.750000
1	art	run	167	4.313173	742.316667
2	std	dropped_no_bus	361	12.558165	2176.733333
3	std	run	125	4.409203	723.466667

Block failures reported: 1. Block failure data.

Electricity costs

	demand_charge	energy_cost	solar_export_rev	total
2022-09	$24,671.15	$1,016.02	$-540.27	$25,146.90

Other details

Full inputs:

• Directory of sources including power rates and bus battery sizes.
• depot_name:KB
• start_date:2022-09-12
• num_days:2
• std_bus_num:20
• art_bus_num:20
• exp_bus_num:0
• charger_power:150
• chargers:30
• depot_power_supply:2000
• block_waittime:15
• rate_type:tod_high
• constrain_charging_power:False
• bus_gen:gen_1
• peak_constraint:0
• shoulder_constraint:0
• battery_kwh:1000
• battery_hours:4
• solar_kw:500
• bus_batt_min:100
• real_temp:True
• temp:23
• blocks_sqltable:super_blocks_Gen_1
• run_until:0
• bus_percentile:0.0
• superblocks:True
• usable_battery:0.6
